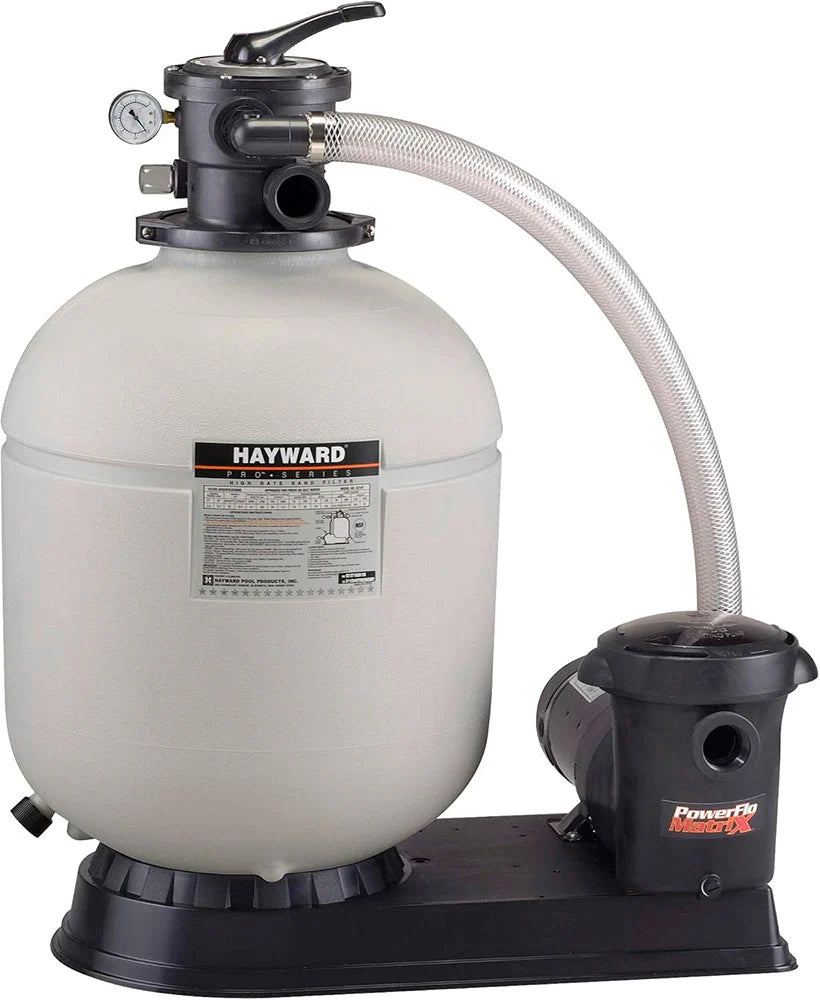

Hayward ProSeries® Filters/Systems – Reliable Filtration for Every Pool Size
Whether you’re outfitting a small above-ground pool or managing a large semi-inground setup, Hayward’s ProSeries® filters/systems offer reliable, high-performance filtration with models tailored to every need. Below is a breakdown of the various models and why they’re trusted by pool professionals.
Product Line Overview:
S144T 14” ProSeries® Filter/System
• Economical solution for smaller above-ground pools
• Seven-position multiport control valve
• Filtration system includes PowerFlo LX® Series high-performance pump and one-piece base
• Available as a system or filter only
S166T 16” ProSeries® Filter/System
• Larger unit designed to fit most above-ground pools
• Seven-position multiport control valve
• Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece base
• Available as a system or filter only
S180T 18” ProSeries® Filter/System
• High-powered, high-capacity filtration for larger above-ground pools
• Seven-position multiport control valve
• Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece base
• Available as a system or filter only
S210T 21” ProSeries® Filter/System
• Bigger solution for greater filtration in above-ground pools and small in-ground pools
• Seven-position multiport control valve
• Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece, deluxe base
• Available as a system or filter only
S230T 23” ProSeries® System
• Ultimate system for large above-ground pools and small in-ground pools
• Seven-position multiport control valve
• Filtration system includes PowerFlo Matrix or LX Series high-performance pump and one-piece, deluxe base
• Available as a system only

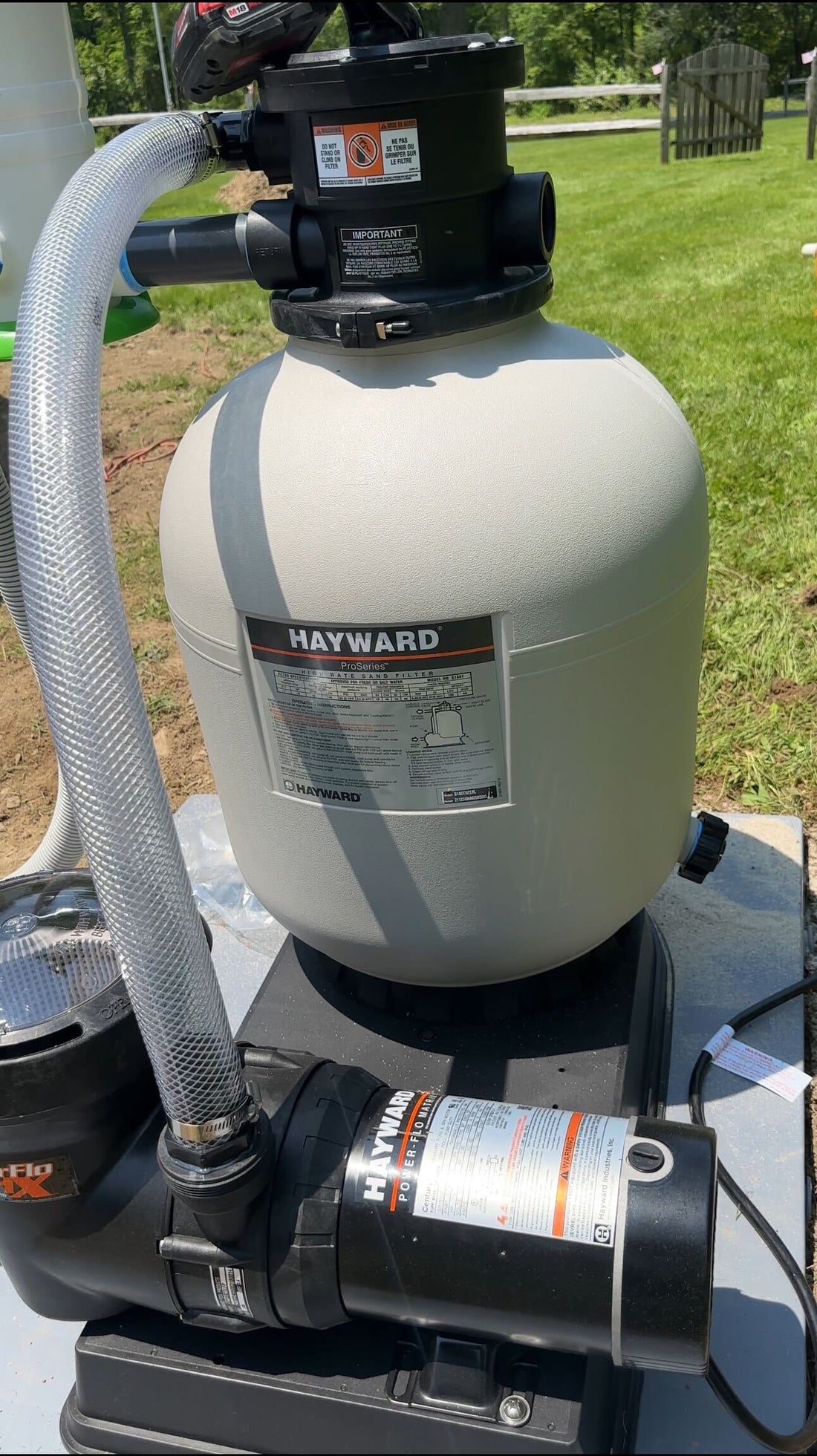

Why You Should Go With the Pro
Hayward’s ProSeries filters are better by design. Available in five different sizes, they’re suitable for a variety of pools, and with corrosion-proof construction, they’ll keep your water clear, season after season.
Seven-Position Valve Puts You in Control
The ProSeries filters’ patented multiport control valve—developed by Hayward®—is designed with seven different positions. An easy-to-use lever-action handle lets you quickly dial any function.
Superior Filtration from the Inside Out
The self-cleaning underdrain assembly with 360° slotted laterals provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing.
Long-Lasting Convenience
You can easily access the ProSeries filter assembly for simple servicing via the unique folding umbrella design in the laterals. A corrosion-proof housing protects the filter from severe weather, ensuring reliable operation for years to come.
ProSeries Specifications
| Feature | Description |
|---|---|
| Filter Type | High-rate sand: No. 20 silica sand (0.45 mm – 0.55 mm) |
| Filter Tank | Molded polymeric |
| Underdrain | 360° self-cleaning slotted laterals, precision installed in ball-joint assembly |
| Control Valve | Seven-position, top-mount VariFlo® valve with lever-action handle |
| Valve Fastening | Flange clamp design |
| Pump and Motor* | PowerFlo LX or PowerFlo Matrix Series Pump – 115 volts |
| Mounting Base | Injection-molded thermoplastic |
ProSeries Filter Performance Data
| Model Number | Effective Filtration Area | Design Flow Rate | Turnover (8 hrs) | Turnover (12 hrs) |
|---|---|---|---|---|
| S144T | 1.07 ft² | 25 GPM | 12,000 gallons | 18,000 gallons |
| S166T | 1.40 ft² | 30 GPM | 14,400 gallons | 21,600 gallons |
| S180T | 1.75 ft² | 35 GPM | 16,800 gallons | 25,200 gallons |
| S210T | 2.20 ft² | 44 GPM | 21,120 gallons | 31,680 gallons |
| S230T | 2.70 ft² | 54 GPM | 25,920 gallons | 38,880 gallons |
